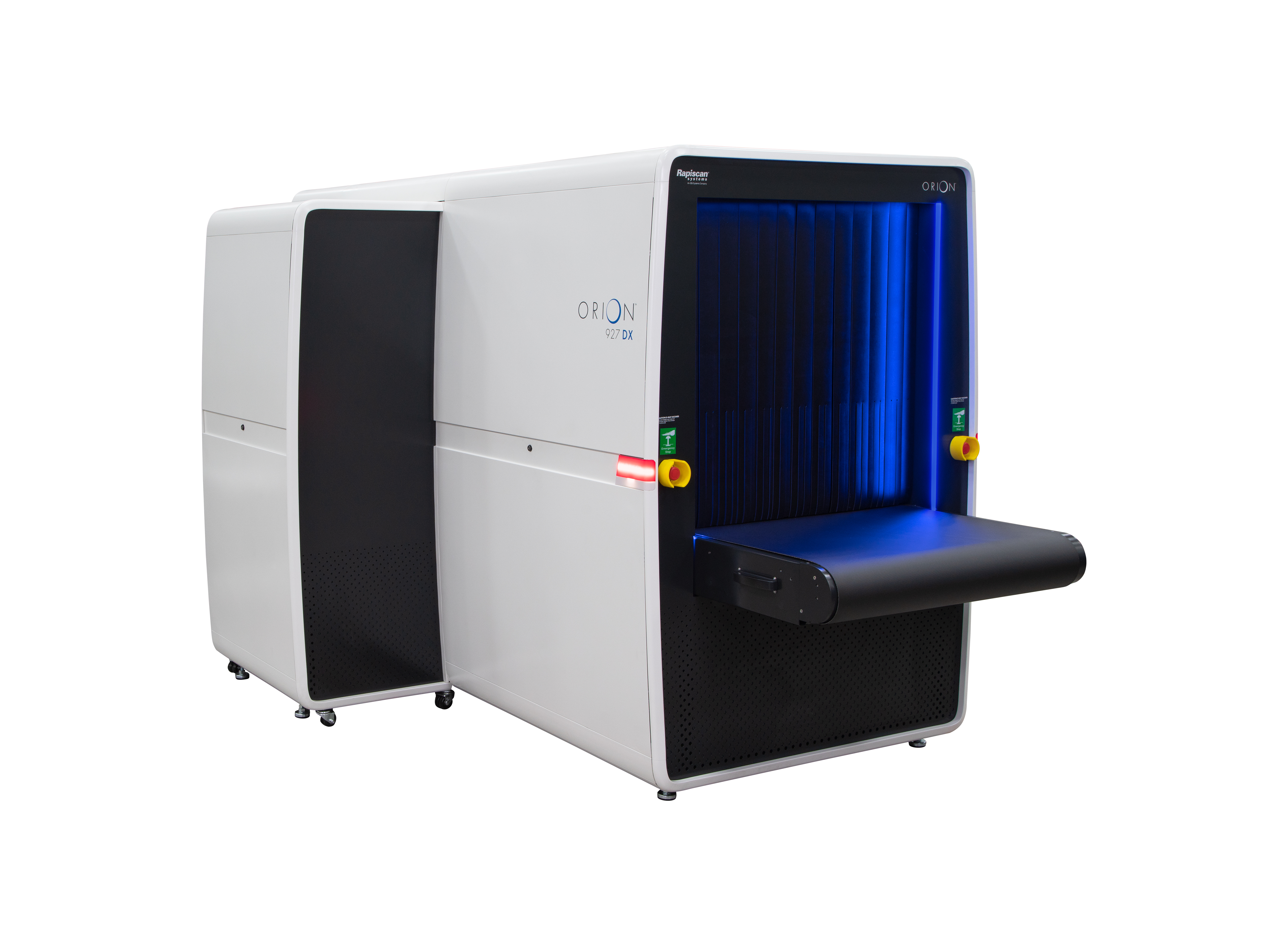

The 927DX is a high performance 1010mm by 1010mm tunnel dual view X-ray screening system for advanced threat detection.
Orion 927DX is a high performance 1010mm x 1010mm tunnel dual view X-ray screening system that combines superb image quality and excellent threat detection alert capabilities to help quickly identify what could be explosives, narcotics, weapons and other contraband concealed in baggage and small cargo.
EXCEPTIONAL IMAGE QUALITY FOR IMPROVED THREAT DETECTION
MATERIAL DISCRIMINATION & OPERATOR ASSIST TOOLS SUPPORT IMAGE ANALYSIS
SOFTWARE FEATURES AND OPTIONS AID FASTER SCREENING
MATRIXING, NETWORKING & REMOTE VIEWING OPTIONS
Explosive threats, narcotics & density alerts
17 Image processing functions
Automatic, Enhanced Image Archiving
Remote Status Monitoring & Archive Review
Multi‐System Alarm Resolution Network
EXCEPTIONAL IMAGE QUALITY
The Orion 927DX high-performance screening system with 41 AWG standard wire resolution and 38 mm steel penetration with .8mm vertical & horizontal spatial resolution, displays images in the Classic 4-color and Rapiscan's proprietary Spectrum 4-color (SP4) option for a brighter color palette, providing superior image quality, and allowing improved security by quick and accurate identification of threats and increased throughput.
OPERATOR ASSIST TOOLS
Target™ function highlights regions of an X-ray image that could be explosive material. The algorithm estimates factors such as atomic number, density, and size and then compares these values to characteristics of known explosive materials to identify possible threats.
NARCScan algorithm is designed to highlight areas of an image that might contain narcotics. NARCScan works in real time, using a proprietary algorithm to process scan data to estimate material characteristics including atomic number, density, and size.
Density Threat Alert (DTA) visually highlights high- absorbing regions of the X-ray image. The algorithm generates a visible alert on the screen and the user can select the density threshold at which this alarm will activate, to best meet the needs of their application.
DUAL MODE AUTO ZEFF
The dual mode Z-effective feature helps with identification of organic materials accurately and quickly either in Range mode which highlights the areas based on range selected by the operator, and/or in Interactive mode which provides the operator the option to display the areas based on the value of the pixel.
EXPLOSIVES AND NARCOTICS DETECTION
Target and NARCScan are designed to detect a wide range of explosives and narcotics respectively in real time during the scanning process by marking a potential threat on the X-ray image. Rapiscan® Systems detection algorithms are based on regulatory approved material analysis techniques.
MATRIXING, NETWORKING & REMOTE VIEWING
Available networking options offer the ability to perform configuration management from one central network computer, remote network image archive review from a unified management platform, remote status monitoring through a web enabled interface, and a multi-system alarm resolution network display station to improve the effectiveness of manual searches by providing scanned reference images to the manual screener.
