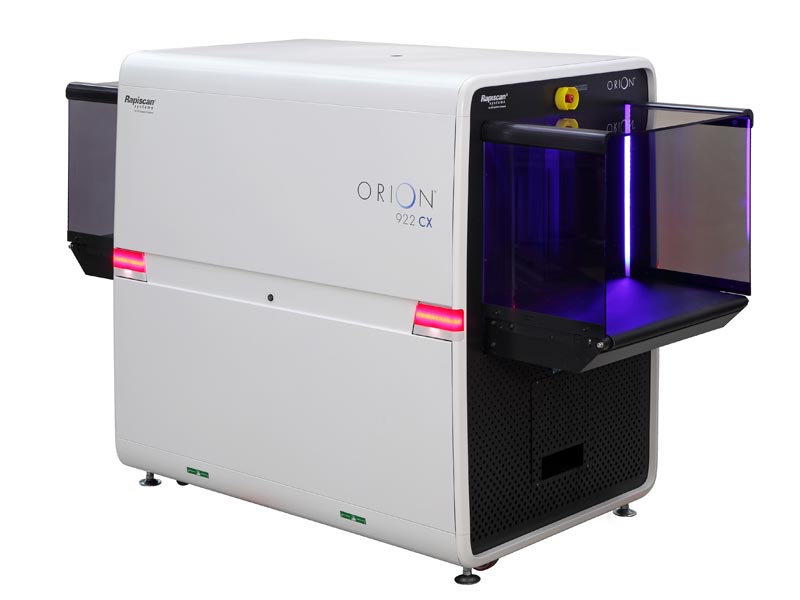

Orion® 922CX is a single view, high performance 750mm x 550mm tunnel checkpoint X-ray screening system providing best-in-industry resolution for the detection of potential explosives and narcotics concealed in large carry-on baggage and parcels.
Combining superior wire and spatial resolution for exceptional image clarity with a larger tunnel, the Orion 922CX is ideal for inspecting oversized carry‑on baggage and parcels at the checkpoint.
HIGHER OPERATIONAL AVAILABILITY - SIGNIFICANT REDUCTION IN CUSTOMER DOWN TIME
COMPLIANT WITH EUROPEAN COMMISSION AVIATION SECURITY REQUIREMENTS
64-BIT WINDOWS 10 OPERATING SYSTEM
REGULATORY BASED EXPLOSIVES DETECTION ALGORITHMS
17 Image processing functions
SINERGY low density image enhancement
Multi‐System Alarm Resolution Network
Automatic, Enhanced Image Archiving
OPERATOR ASSIST TOOLS
Target™ function highlights regions of an X-ray image that could be explosive material. The algorithm estimates factors such as atomic number, density, and size and then compares these values to characteristics of known explosive materials to identify possible threats.
NARCScan algorithm is designed to highlight areas of an image that might contain narcotics. NARCScan works in real time, using a proprietary algorithm to process scan data to estimate material characteristics including atomic number, density, and size.
Density Threat Alert (DTA) visually highlights high-absorbing regions of the X-ray image. The algorithm generates a visible alert on the screen and the user can select the density threshold at which this alarm will activate, to best meet the needs of the application.
DUAL MODE ZEFF
This feature aids the operator in quick identification of organic materials, either in Range Mode which highlights areas based on operator selected Z-effective values of 7, 8 or 9, or in Interactive Mode which gives the operator the option to display areas based on the Z effective value of a selected area. This capability enhances both the efficiency and accuracy of the material identification screening process.
SPECTRUM 4-COLOR IMAGING
922CX now can exhibit images in the Classic 4-color and the new proprietary Spectrum 4-color (SP4) option providing superior image, allowing improved security by quick and accurate identification of threats and increase in throughput.
EUROPEAN AVIATION COMPLIANCE
922CX performance is in full compliance with the European Commission Aviation Security Requirements EU 2015/1998.
