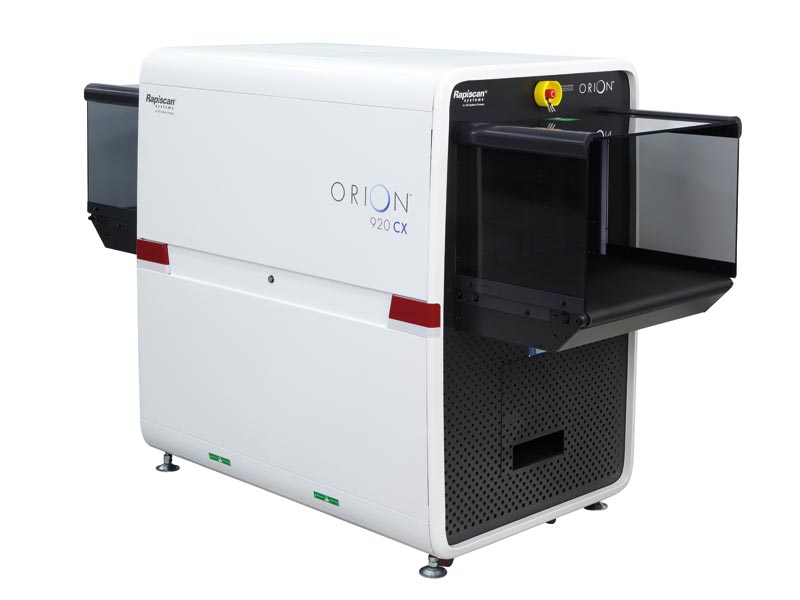

Orion® 920CX is a single-view, high performance 620mm x 420mm tunnel checkpoint X-ray screening system, with exceptional image quality and alert capabilities for the detection of explosives and narcotics.
Orion 920CX provides the best measured steel penetration, wire resolution and spatial resolution to complete its superior image quality and exceptional threat detection, ideal for high throughput checkpoint environments.
INDUSTRY BEST IMAGE QUALITY FOR EXCEPTIONAL THREAT DETECTION
SOFTWARE FEATURES AND OPTIONS AID FASTER SCREENING
MATERIAL DISCRIMINATION & OPERATOR ASSIST TOOLS SUPPORT IMAGE ANALYSIS
MATRIXING, NETWORKING & REMOTE VIEWING OPTIONS
REGULATORY BASED EXPLOSIVES DETECTION ALGORITHMS
17 Image processing functions
SINERGY low density enhancement
Automatic, Enhanced Image Archiving
TRAY RETURN SYSTEM COMPATIBLE
OPERATOR ASSIST TOOLS
Target™ function highlights regions of an X-ray image that could be explosive material. The algorithm estimates factors such as atomic number, density, and size and then compares these values to characteristics of known explosive materials to identify possible threats.
NARCScan algorithm is designed to highlight areas of an image that might contain narcotics. NARCScan works in real time, using a proprietary algorithm to process scan data to estimate material characteristics including atomic number, density, and size.
Density Threat Alert (DTA) visually highlights high-absorbing regions of the X-ray image. The algorithm generates a visible alert on the screen and the user can select the density threshold at which this alarm will activate, to best meet the needs of the application.
SPECTRUM 4-COLOR IMAGING
Rapiscan’s proprietary Spectrum 4-color Imaging provides operators the ability to easily change between Classic 4-color and Spectrum-4 for a brighter color palette, a key option which allows faster screening leading to increased throughput and improved security.
DUAL MODE AUTO ZEFF
This feature aids the operator in quick identification of organic materials, either in Range Mode which highlights areas based on operator selected Z-effective values of 7, 8 or 9, or in Interactive Mode which gives the operator the option to display areas based on the Z-effective value of a selected area. This capability enhances both the efficiency and accuracy of the material identification screening process.
MATRIXING, NETWORKING & REMOTE VIEWING
Available networking options offer the ability to perform configuration management from one central network computer, remote network image archive review from a unified management platform, remote status monitoring through a web enabled interface, and a multi system alarm resolution network display station to improve the effectiveness of manual searches by providing scanned reference images to the manual screener.
