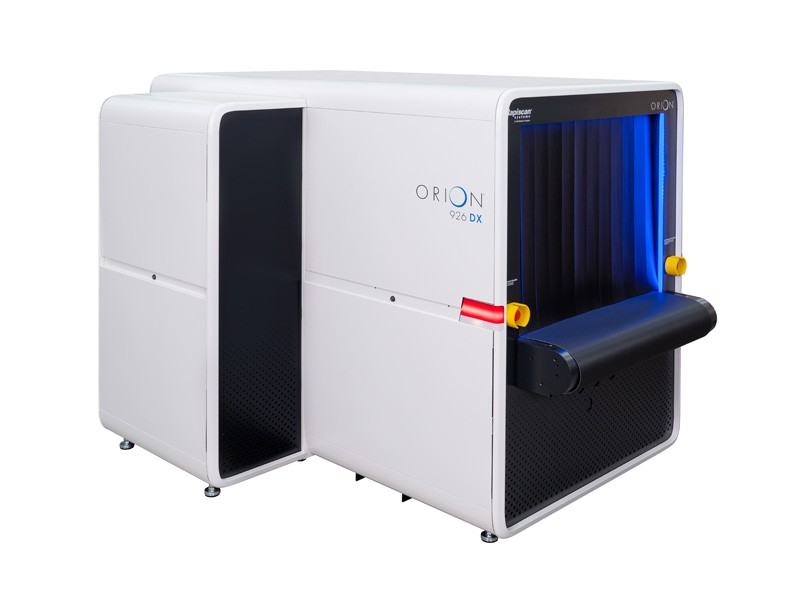

The Orion 926DX is a high-performance dual view X-ray screening system.
Orion 926DX is a high-performance 930mm x 780mm tunnel dual-view X-ray screening system, with best-in-class image quality and threat alert capabilities for the detection of potential explosive threats, narcotics, weapons and other contraband found in baggage and small cargo.
BEST-IN-CLASS IMAGE QUALITY FOR IMPROVED DETECTION
OPERATOR ASSIST TOOLS SUPPORT IMAGE ANALYSIS
HIGH SPEED CONVEYOR BELT FOR INCREASED THROUGHPUT
EXPLOSIVE THREATS, NARCOTICS & DENSITY ALERTS
SINERGY LOW DENSITY ENHANCEMENT
AUTOMATIC, ENHANCED IMAGE ARCHIVING
MULTILINGUAL SUPPORT
BEST IN CLASS IMAGE
Potential threats are becoming increasingly challenging to identify. 41 AWG standard wire resolution, and 38 mm standard steel penetration with .8mm vertical & horizontal spatial resolution, complete the high performance screening system. Orion 926DX was purpose-built to improve visibility during the screening process helping operators identify and mitigate potential threats faster leveraging innovative features including:
GEOMETRIC DISTORTION CORRECTION
A near perfect aspect ratio correction which ensuring the most accurate image of objects scanned are presented with the correct aspect ratio regardless of orientation and position on the belt.
SPECTRUM COLOR PALETTES
Configurable color palettes including Classic 4-color, Spectrum-4 and Spectrum-7 to better visualize potential threat objects.
DUAL MODE AUTO ZEFF
The Dual mode Z-effective feature enhances both the efficiency and accuracy of the material identification screening process by identifying organic materials accurately and quickly, either in Range mode which highlights areas based on operator selected Z-effective values of 7,8,or 9, or in Interactive mode which provides the operator the option to display the Z-effective number of a selected pixel.
HIGH SPEED CONVEYOR
The Orion suite continues to re-imagine X-ray screening with the best in class image quality at the highest belt speeds. The Orion 926DX has been designed with a configurable conveyor qualified at three speeds, 0.2m/s, 0.35m/s and 0.5m/s. The speed can be adjusted in the field by qualified Service staff as your operational needs flex into the future.
OPERATOR ASSIST TOOLS
Target™ and NARCScan are designed to detect a wide range of explosives and narcotics respectively in real time during the scanning process by marking a potential threat on the X-ray image. Density Threat Alert (DTA) visually highlights high-absorbing regions of the X-ray image. Rapiscan® Systems detection algorithms are based on regulatory approved material analysis techniques.
