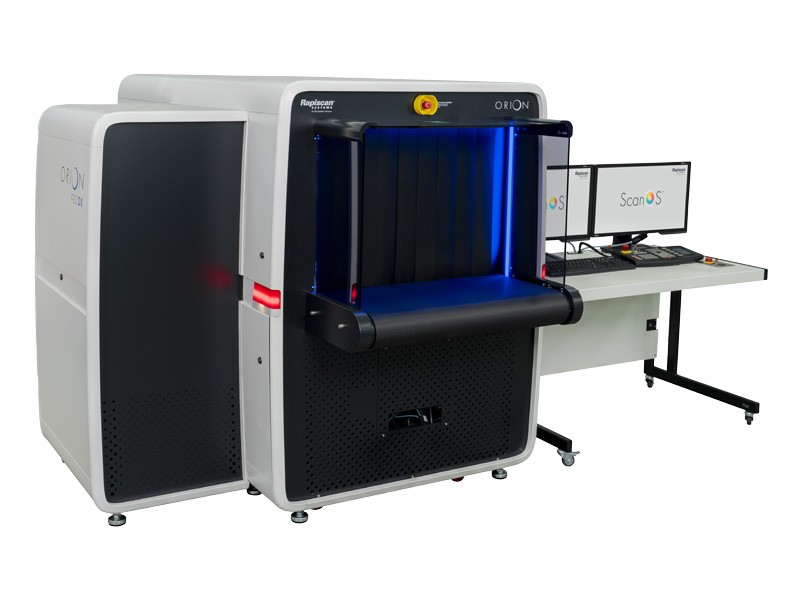

Orion 922DX is a high performance, 770mm x 570mm tunnel dual view checkpoint screening system, with best-in-class image quality and threat detection alert capabilities.
Orion 922DX delivers best-in-class image quality and advanced threat detection alert capabilities for identifying explosive threats, narcotics, weapons and other contraband in baggage, parcels and small cargo.
BEST IN CLASS IMAGE QUALITY FOR IMPROVED DETECTION
OPERATOR ASSIST TOOLS SUPPORT IMAGE ANALYSIS
HIGH - SPEED CONVEYOR BELT FOR IMPROVED EFFICIENCY
SCANOS 64-bit Operating System
Geometric Distortion CORRECTION
Classic 4 color, Spectrum 4 & Spectrum 7
SINERGY low density enhancement
Dual Mode Z-effective
Crystal Clear™
VOLUMIZER
Automatic, Enhanced Image Archiving
Multilingual Support
BEST IN CLASS IMAGE
Potential threats are becoming increasingly challenging to identify. ORION® with SCANOS was purpose-built to improve visibility during the screening process helping operators identify and mitigate potential threats faster leveraging innovative features including:
HIGH RESOLUTION
The primary view consists of a central under belt generator coupled with a high resolution U shaped detector array bringing the X-Ray source as close as possible to the objects being scanned. Using a central under belt source provides natural magnification of object scanned across the maximum number of detector pixels available ensuring the highest possible resolution.
GEOMETRIC DISTORTION CORRECTION
A near perfect aspect ratio correction which ensuring the most accurate image of objects scanned are presented with the correct aspect ratio regardless of orientation and position on the belt.
SPECTRUM COLOR PALETTES
Configurable color pallets including Classic 4-color, Spectrum-4 and Spectrum-7 to better visualize potential threat objects.
OPERATOR ASSIST TOOLS
Target and NARCScan are designed to detect a wide range of explosives and narcotics respectively in real time during the scanning process by marking a potential threat on the X-ray image. Density Threat Alert (DTA) visually highlights high-absorbing regions of the X-ray image. Rapiscan® Systems detection algorithms are based on regulatory approved material analysis techniques.
DUAL MODE AUTO ZEFF
The Dual mode Z-effective feature helps with identification of organic materials accurately and quickly either in Range mode which highlights the areas based on range selected by the operator, and/or in Interactive mode which provides the operator the option to display potential Materials based on the Z-effective of the selected location.
HIGH - SPEED CONVEYOR
922DX has been designed with a configurable conveyor qualified at three speeds, 0.2m/s, 0.35m/s and 0.5m/s. The speed can be adjusted in the field by qualified Service staff as your operational needs flex into the future.
